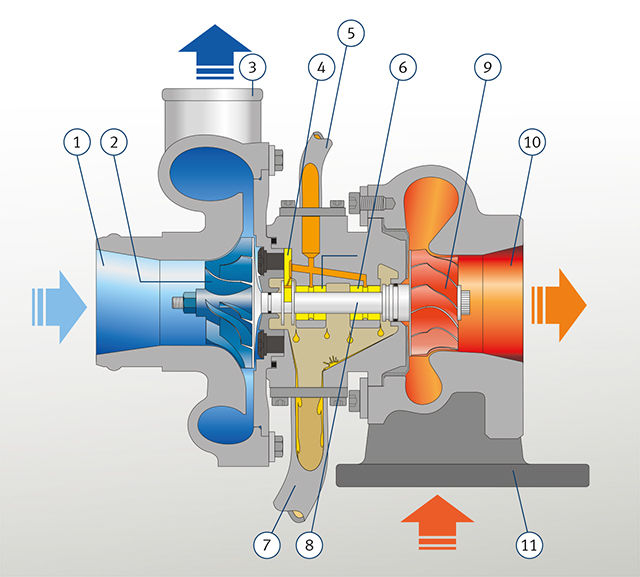

Structure of the turbocharger?
1️⃣ Fresh air inlet�
2️⃣ Compressor impeller�
3️⃣ Fresh air outlet (compressed)�
4️⃣ Axial shaft bearing (thrust washer)�
5️⃣ Oil supply connection�
6️⃣ Radial shaft bearing�
7️⃣ Return side�
8️⃣ Turbocharger shaft�
9️⃣ Turbine impeller�
? Exhaust gas outlet�
1️⃣1️⃣ Exhaust gas inlet
▪️
Aufbau des Turboladers?
1️⃣ Frischlufteintritt�
2️⃣ Verdichterrad�
3️⃣ Frischluftaustritt (verdichtet)�
4️⃣ Axialwellenlager (Anlaufscheibe)�
5️⃣ Anschluss der Ölversorgung�
6️⃣ Radialwellenlager�
7️⃣ Rücklauf�
8️⃣ Turboladerwelle�
9️⃣ Turbinenrad�
? Abgasaustritt�
1️⃣1️⃣ Abgaseintritt
